Shear Balers Katana
Stazionary Shear Baler

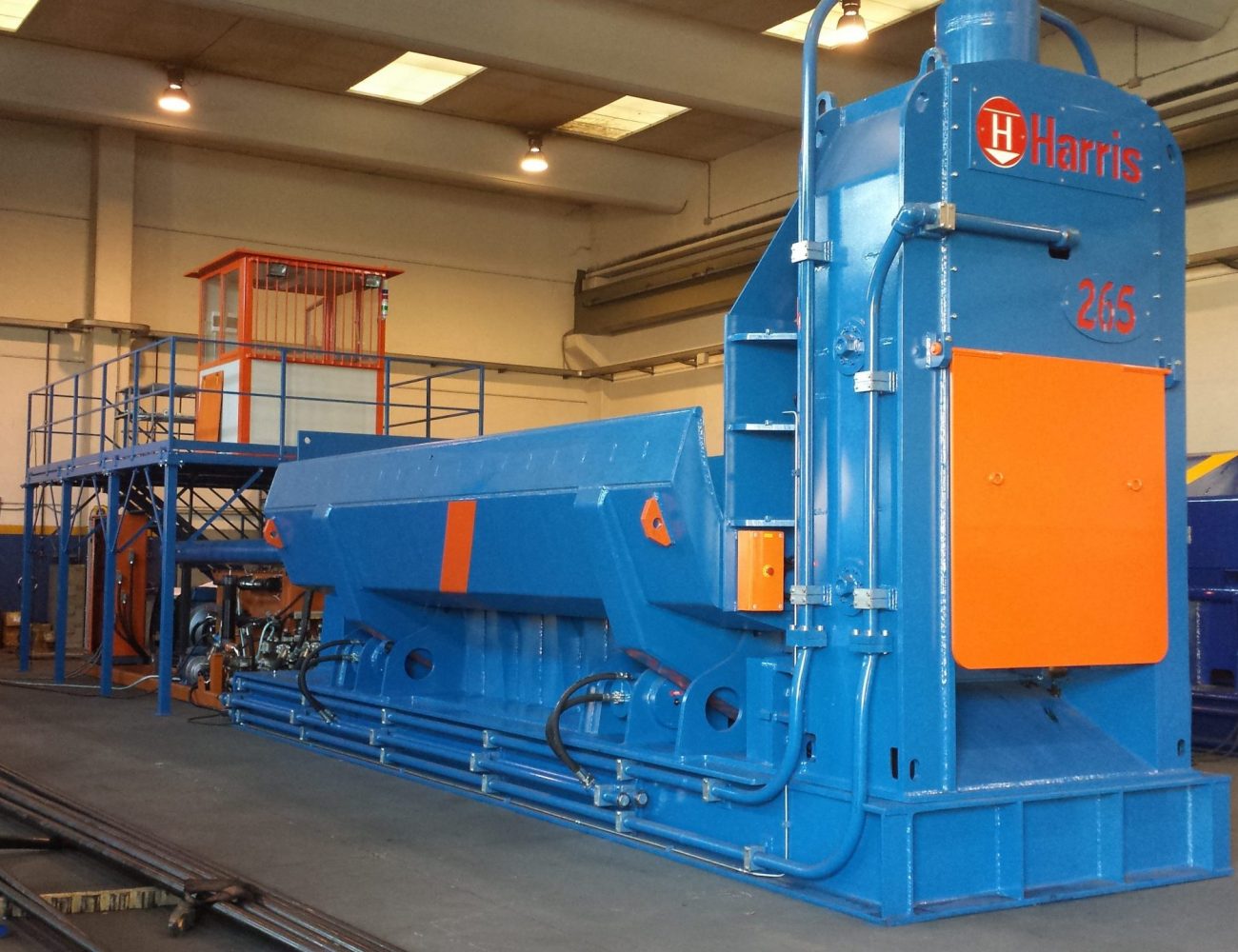

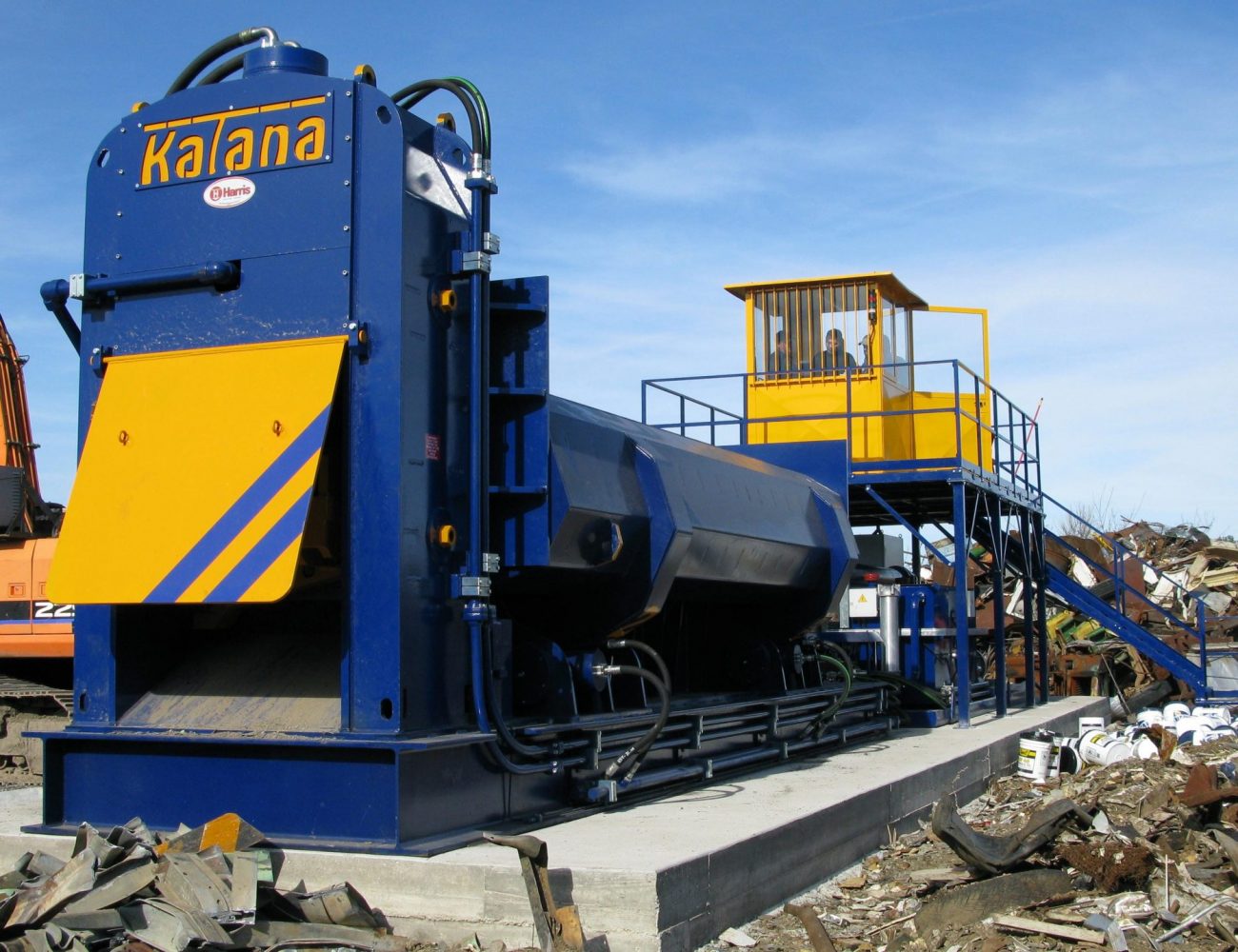

Series 500
| Shears | Katana 265 | |
|---|---|---|
|
Shears:
Shearing force
|
Ton
|
Katana 265:
500
|
|
Shears:
Vertical hold clamp force
|
Ton
|
Katana 265:
60
|
| Compression box | Katana 265 | |
|---|---|---|
|
Compression box:
Compression box length
|
mm
|
Katana 265:
6.200
|
|
Compression box:
Compression box width (with wings open)
|
mm
|
Katana 265:
~ 2.300
|
|
Compression box:
Bale’s dimensions
|
mm
|
Katana 265:
800x600xV
|
|
Compression box:
Oscillating wings with internal crossing cylinders
|
N°
|
Katana 265:
2
|
|
Compression box:
Cylinders on each wing
|
N°
|
Katana 265:
2
|
|
Compression box:
Compression force of the wings (force transmitted to the material)
|
Ton
|
Katana 265:
260
|
|
Compression box:
Longitudinal compression force
|
Ton
|
Katana 265:
150
|
|
Compression box:
Baler total weight
(Standard Configuration) |
kg
|
Katana 265:
95.000
|

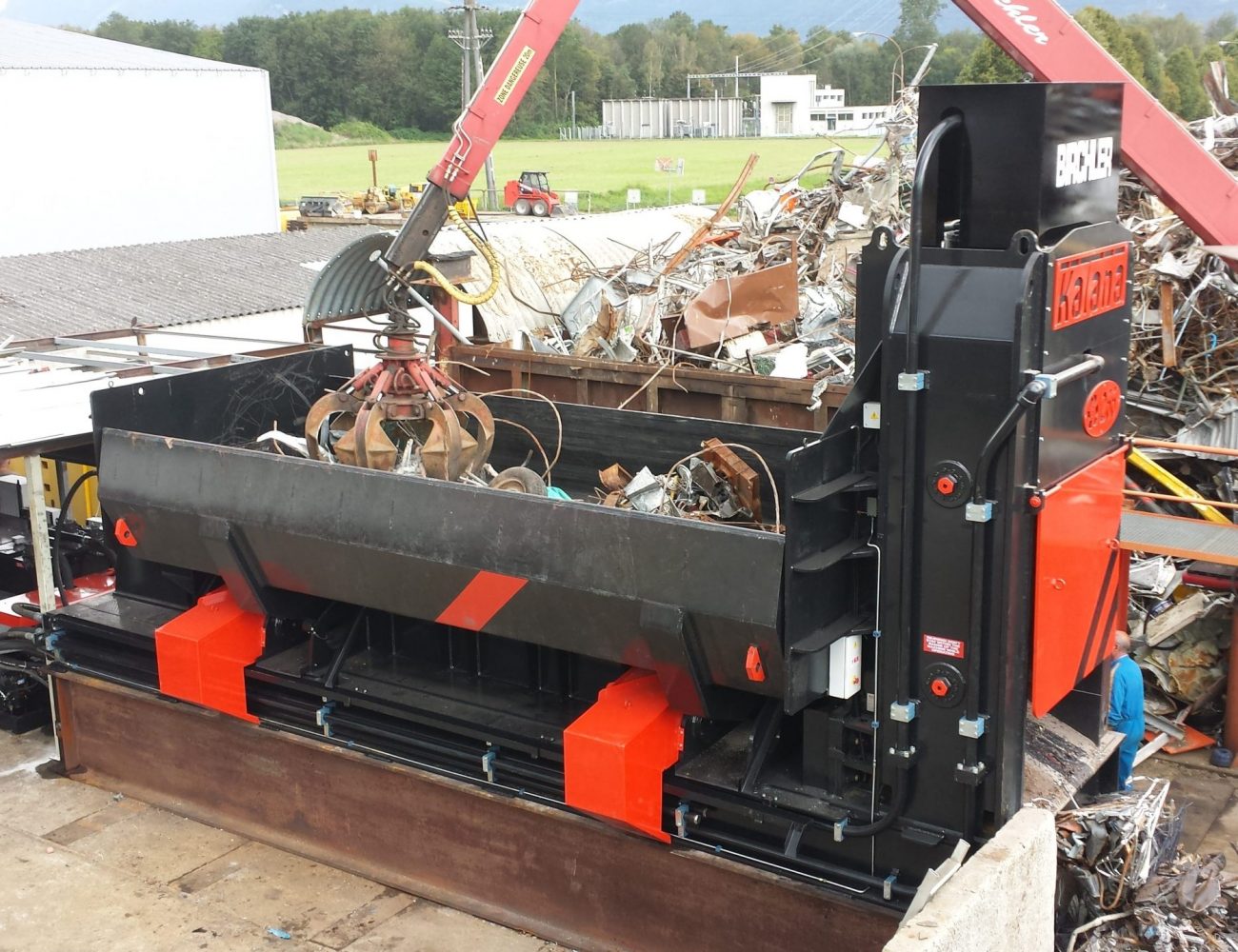

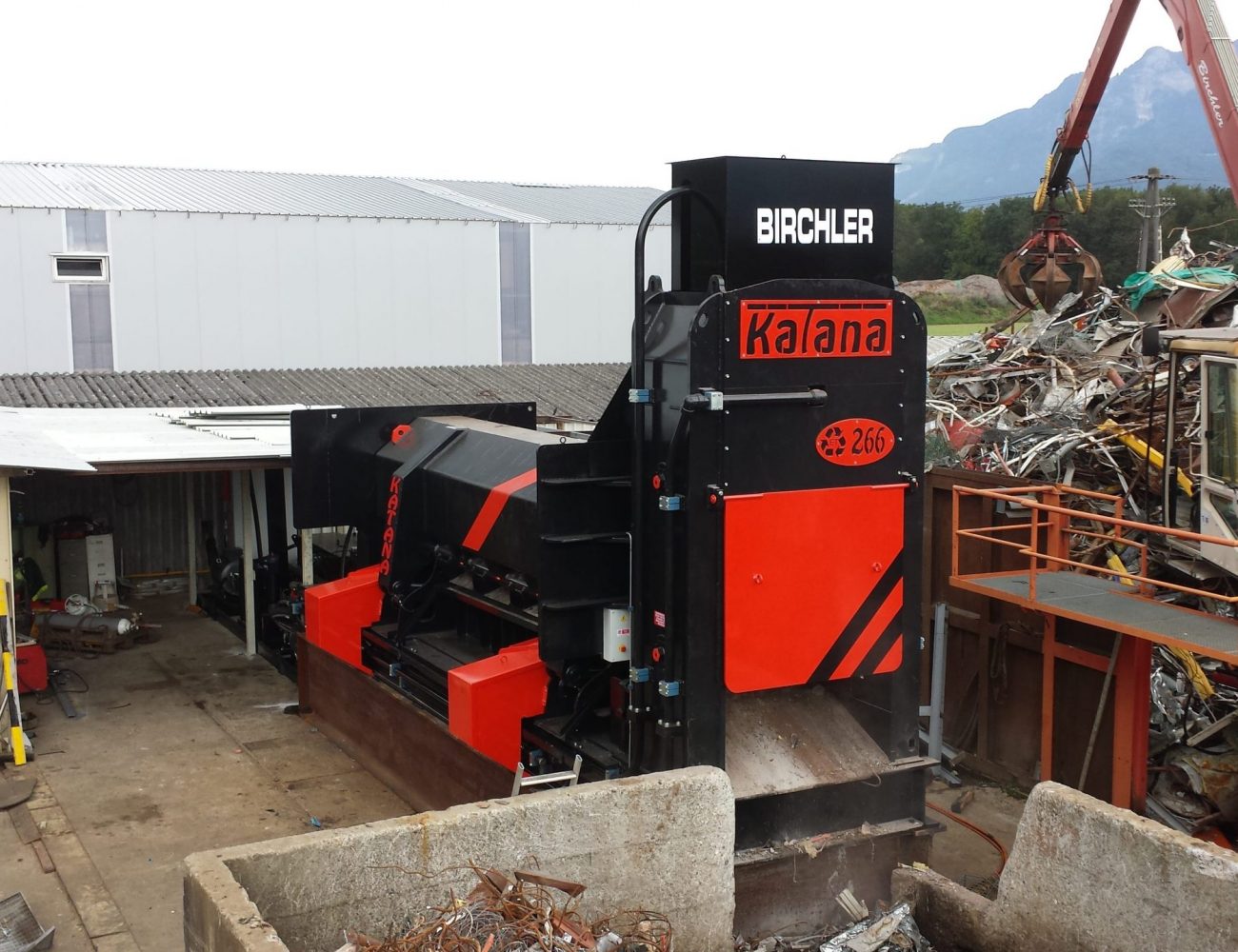

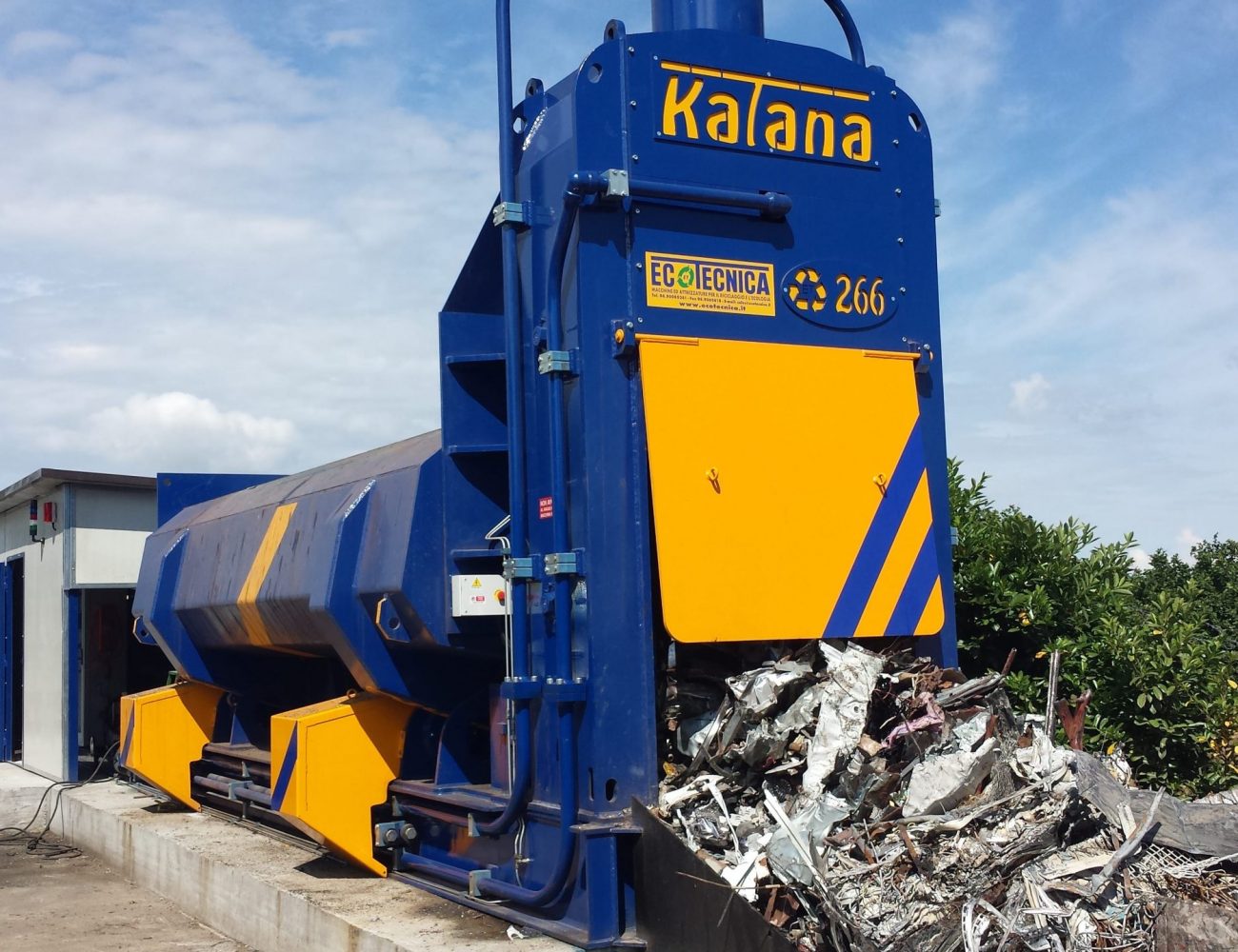

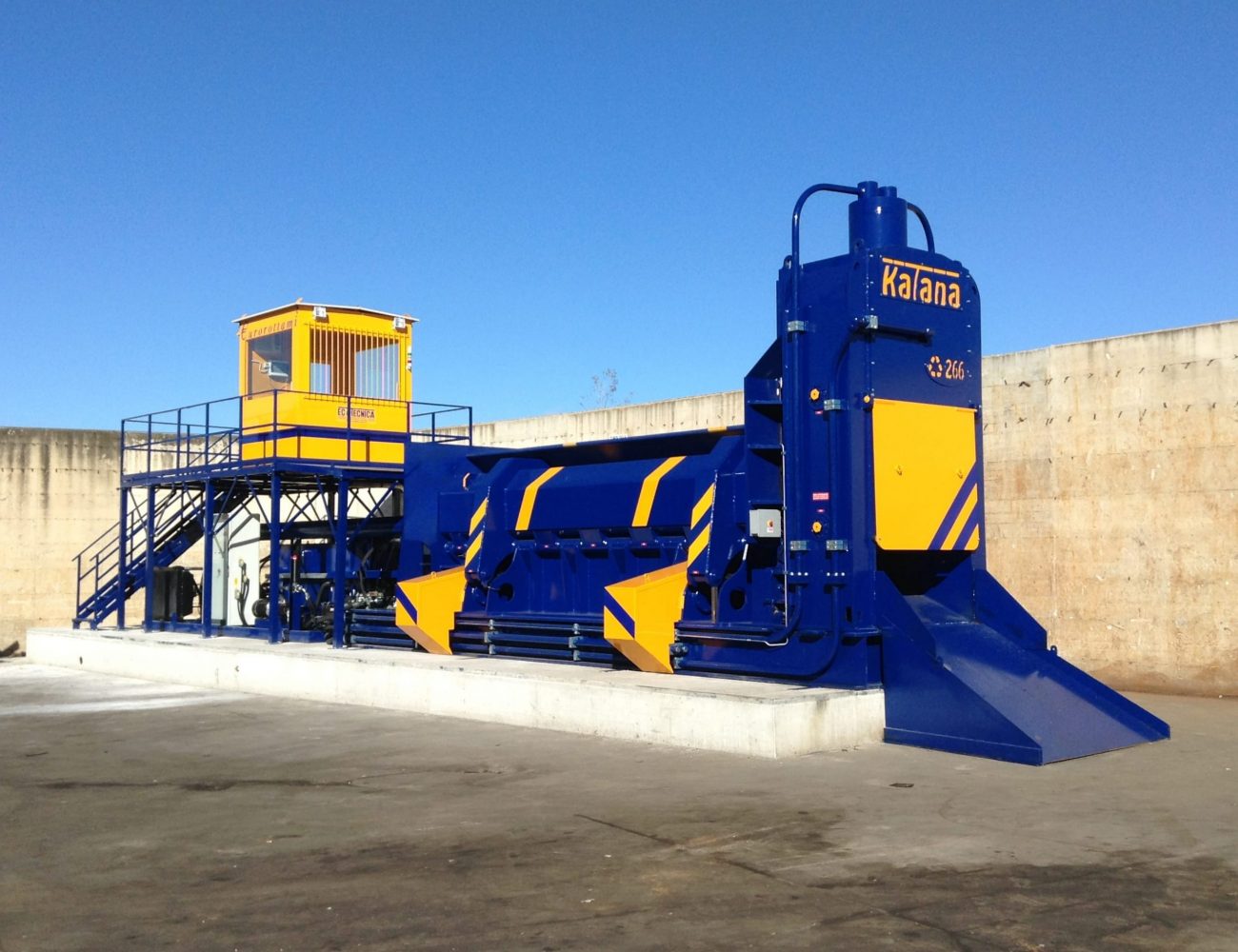

Series 600
| Shears | Katana 266 | Katana 376 | |
|---|---|---|---|
|
Shears:
Shearing force
|
Ton
|
Katana 266:
600
|
Katana 376:
600
|
|
Shears:
Vertical hold clamp force
|
Ton
|
Katana 266:
80
|
Katana 376:
80
|
| Compression box | Katana 266 | Katana 376 | |
|---|---|---|---|
|
Compression box:
Compression box length
|
mm
|
Katana 266:
6.200
|
Katana 376:
7.000
|
|
Compression box:
Compression box width (with wings open)
|
mm
|
Katana 266:
~ 2.550
|
Katana 376:
~ 2.550
|
|
Compression box:
Bale’s dimensions
|
mm
|
Katana 266:
900x700xV
|
Katana 376:
900x700xV
|
|
Compression box:
Oscillating wings with internal crossing cylinders
|
N°
|
Katana 266:
2
|
Katana 376:
2
|
|
Compression box:
Cylinders on each wing
|
N°
|
Katana 266:
2
|
Katana 376:
3
|
|
Compression box:
Compression force of the wings (force transmitted to the material)
|
Ton
|
Katana 266:
300
|
Katana 376:
380
|
|
Compression box:
Longitudinal compression force
|
Ton
|
Katana 266:
180
|
Katana 376:
180
|
|
Compression box:
Baler total weight
(Standard Configuration) |
kg
|
Katana 266:
98.000
|
Katana 376:
102.000
|
Series 700
| Shears | Katana 377 | |
|---|---|---|
|
Shears:
Shearing force
|
Ton
|
Katana 377:
700
|
|
Shears:
Vertical hold clamp force
|
Ton
|
Katana 377:
90
|
| Cassa di Compressione | Katana 377 | |
|---|---|---|
|
Cassa di Compressione:
Compression box length
|
mm
|
Katana 377:
7.000
|
|
Cassa di Compressione:
Compression box width (with wings open)
|
mm
|
Katana 377:
~ 2.550
|
|
Cassa di Compressione:
Bale’s dimensions
|
mm
|
Katana 377:
900x700xV
|
|
Cassa di Compressione:
Oscillating wings with internal crossing cylinders
|
N°
|
Katana 377:
2
|
|
Cassa di Compressione:
Cylinders on each wing
|
N°
|
Katana 377:
3
|
|
Cassa di Compressione:
Compression force of the wings (force transmitted to the material)
|
Ton
|
Katana 377:
380
|
|
Cassa di Compressione:
Longitudinal compression force
|
Ton
|
Katana 377:
180
|
|
Cassa di Compressione:
Baler total weight
(Standard Configuration) |
kg
|
Katana 377:
104.000
|

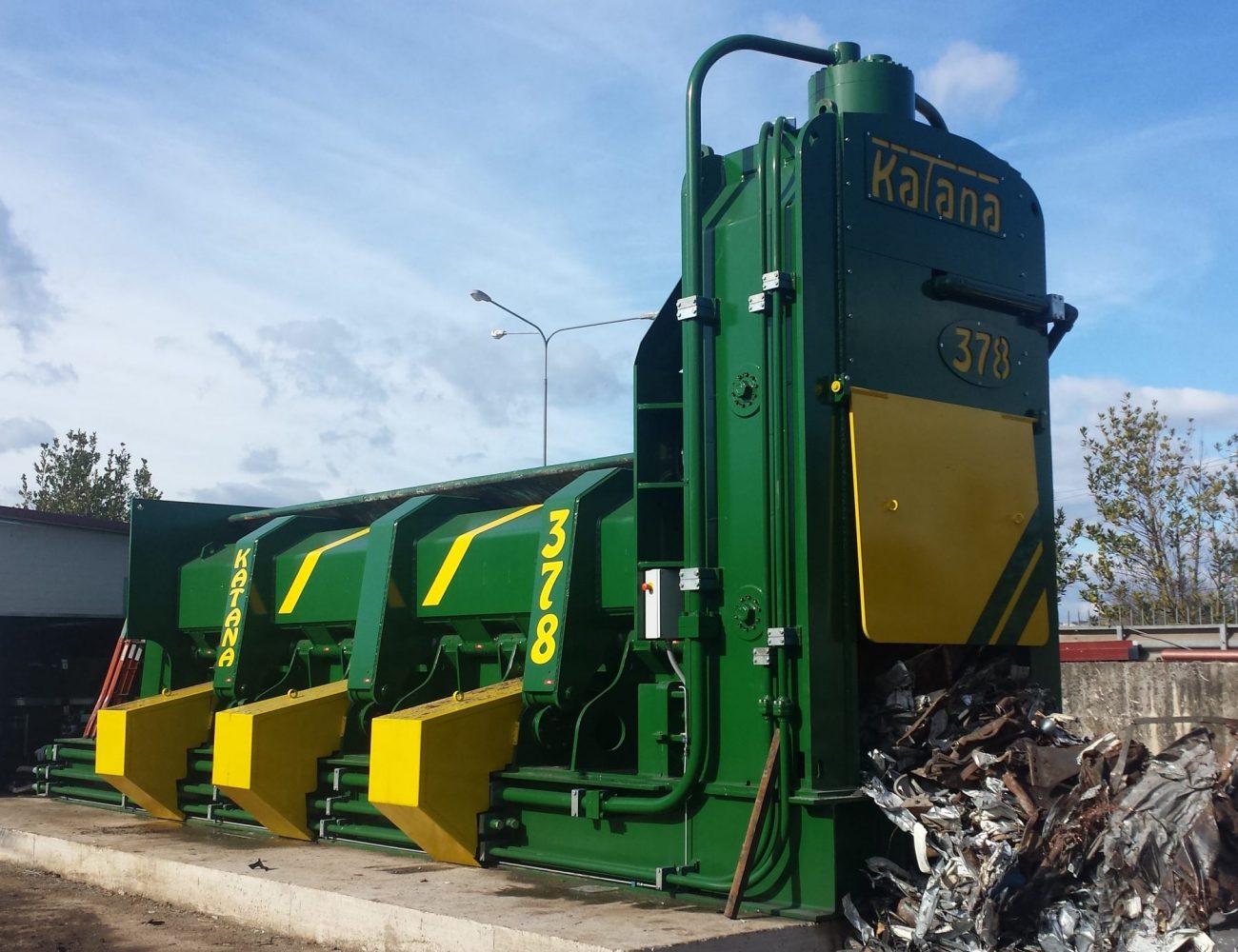

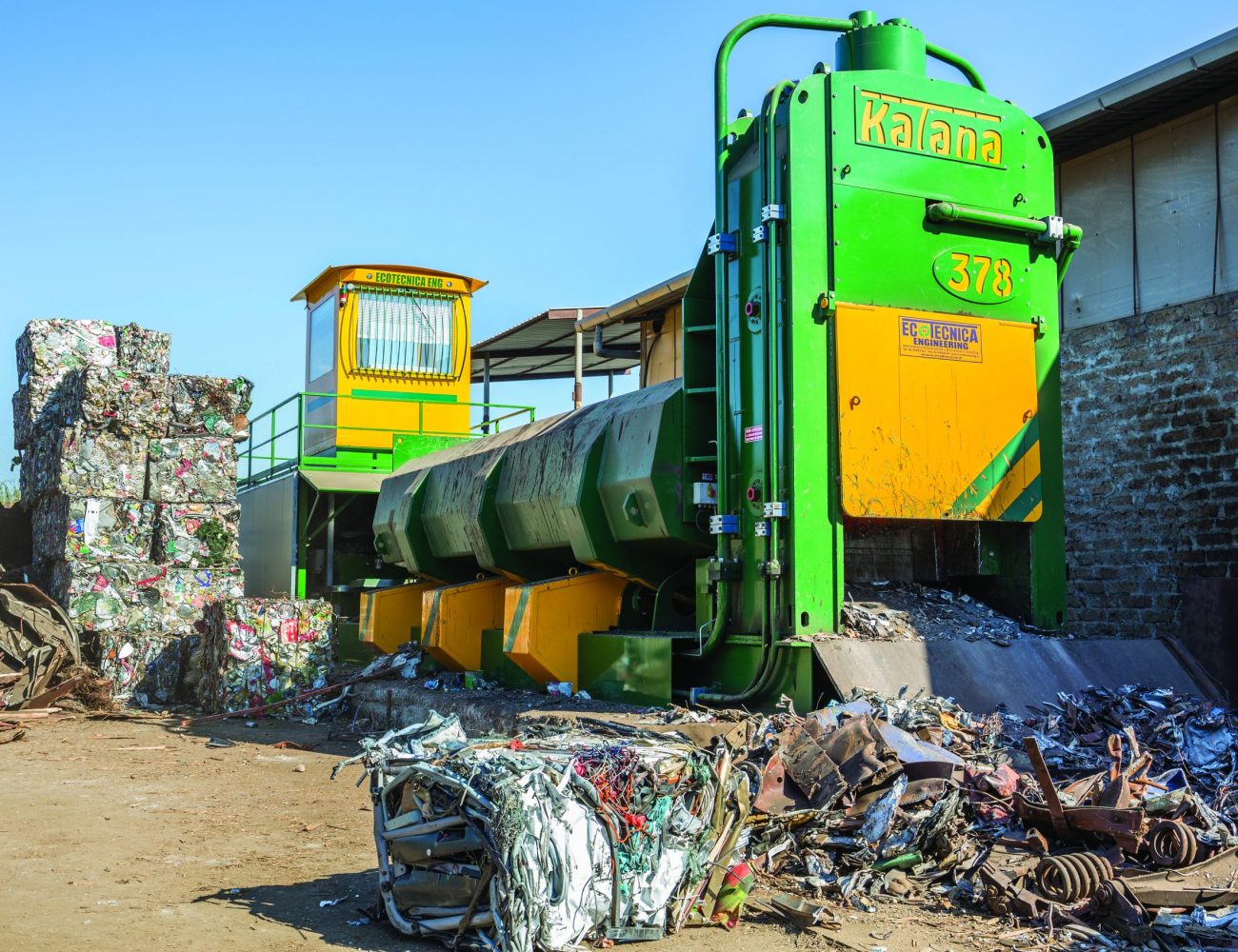

Series 800
| Shears | Katana 378 | |
|---|---|---|
|
Shears:
Shearing force
|
Ton
|
Katana 378:
800
|
|
Shears:
Vertical hold clamp force
|
Ton
|
Katana 378:
90
|
| Compression Box | Katana 378 | |
|---|---|---|
|
Compression Box:
Compression box length
|
mm
|
Katana 378:
7.000
|
|
Compression Box:
Compression box width (with wings open)
|
mm
|
Katana 378:
~ 2.550
|
|
Compression Box:
Bale’s dimensions
|
mm
|
Katana 378:
900x700xV
|
|
Compression Box:
Oscillating wings with internal crossing cylinders
|
N°
|
Katana 378:
2
|
|
Compression Box:
Cylinders on each wing
|
N°
|
Katana 378:
3
|
|
Compression Box:
Compression force of the wings (force transmitted to the material)
|
Ton
|
Katana 378:
380
|
|
Compression Box:
Longitudinal compression force
|
Ton
|
Katana 378:
180
|
|
Compression Box:
Baler total weight
(Standard Configuration) |
kg
|
Katana 378:
106.000
|

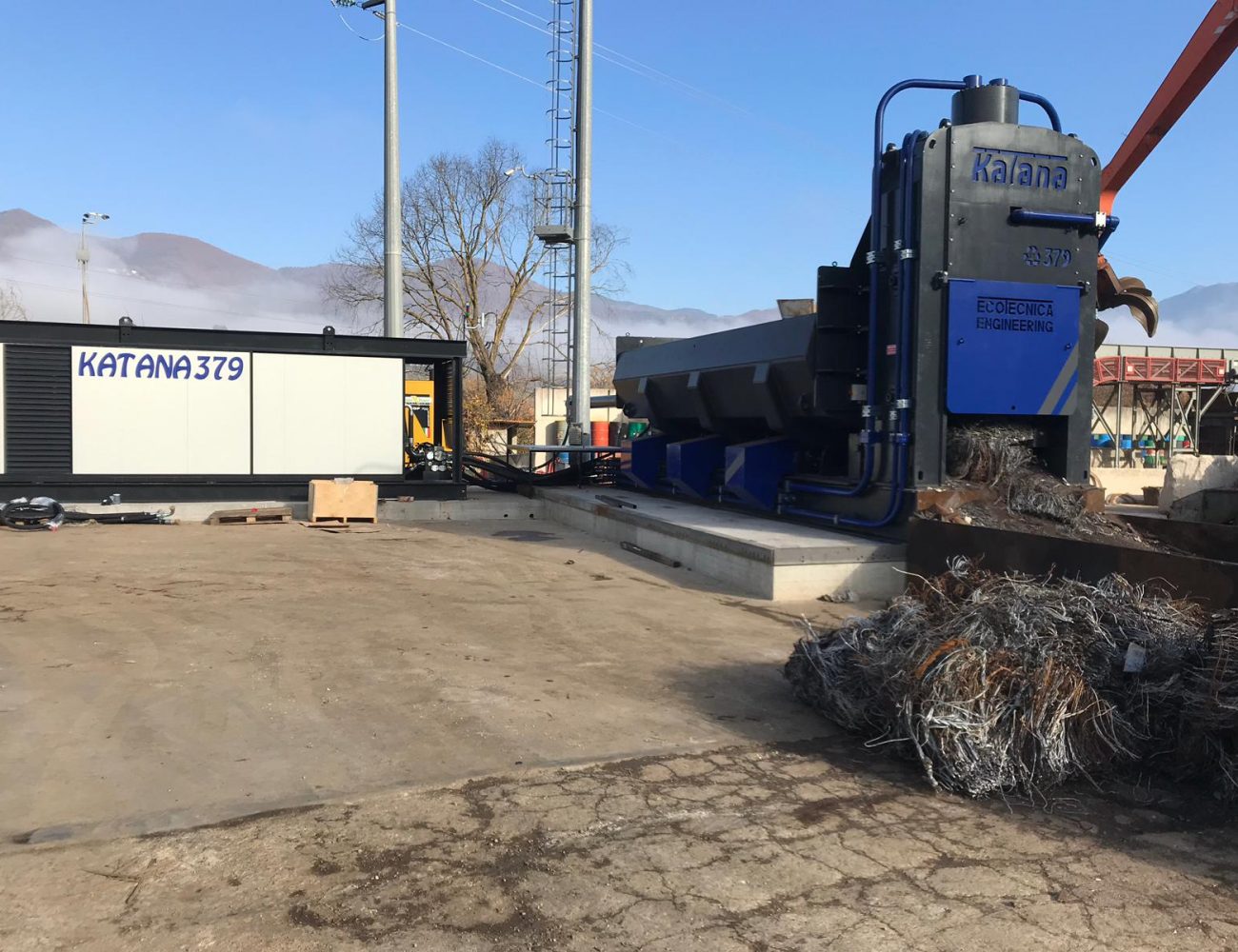

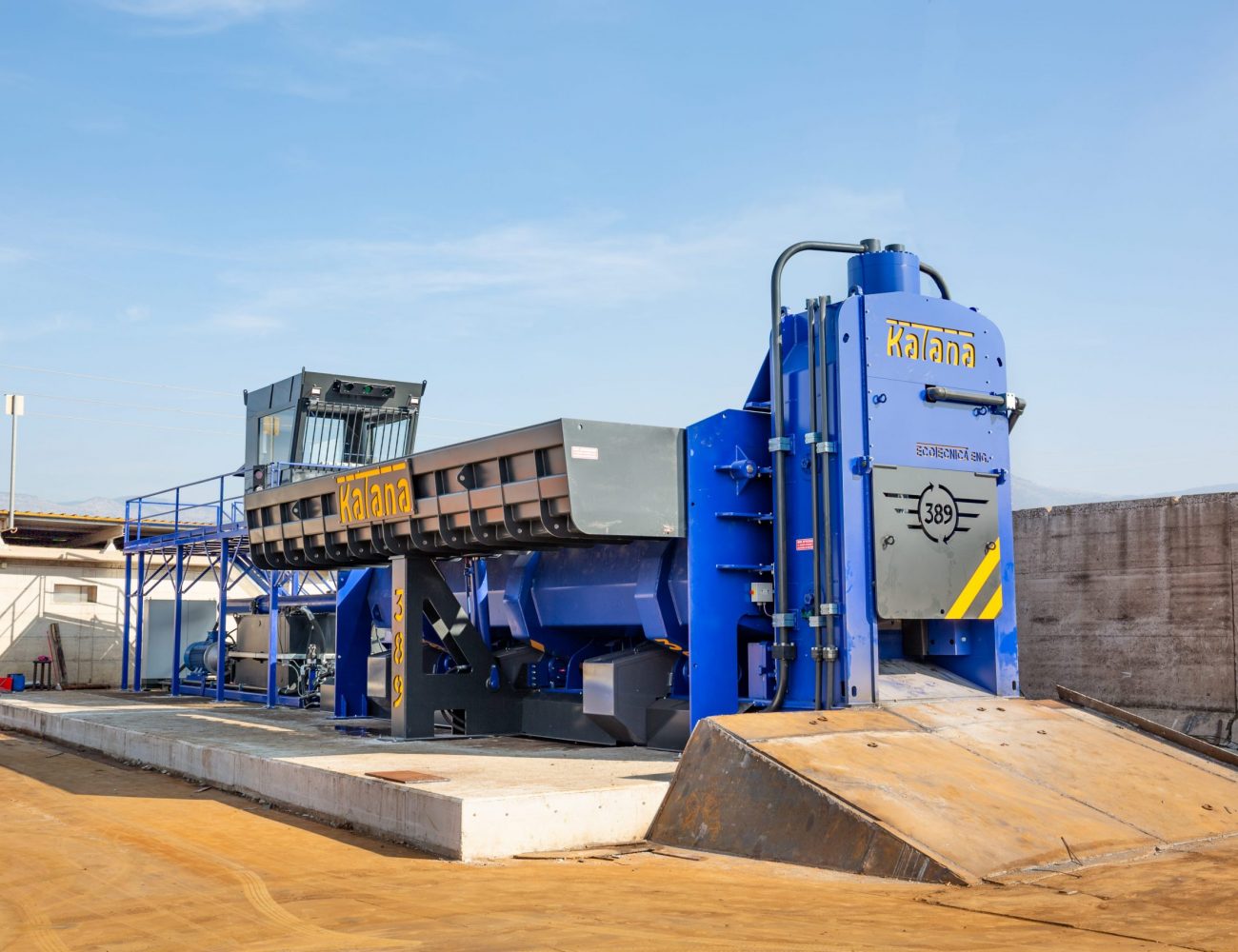

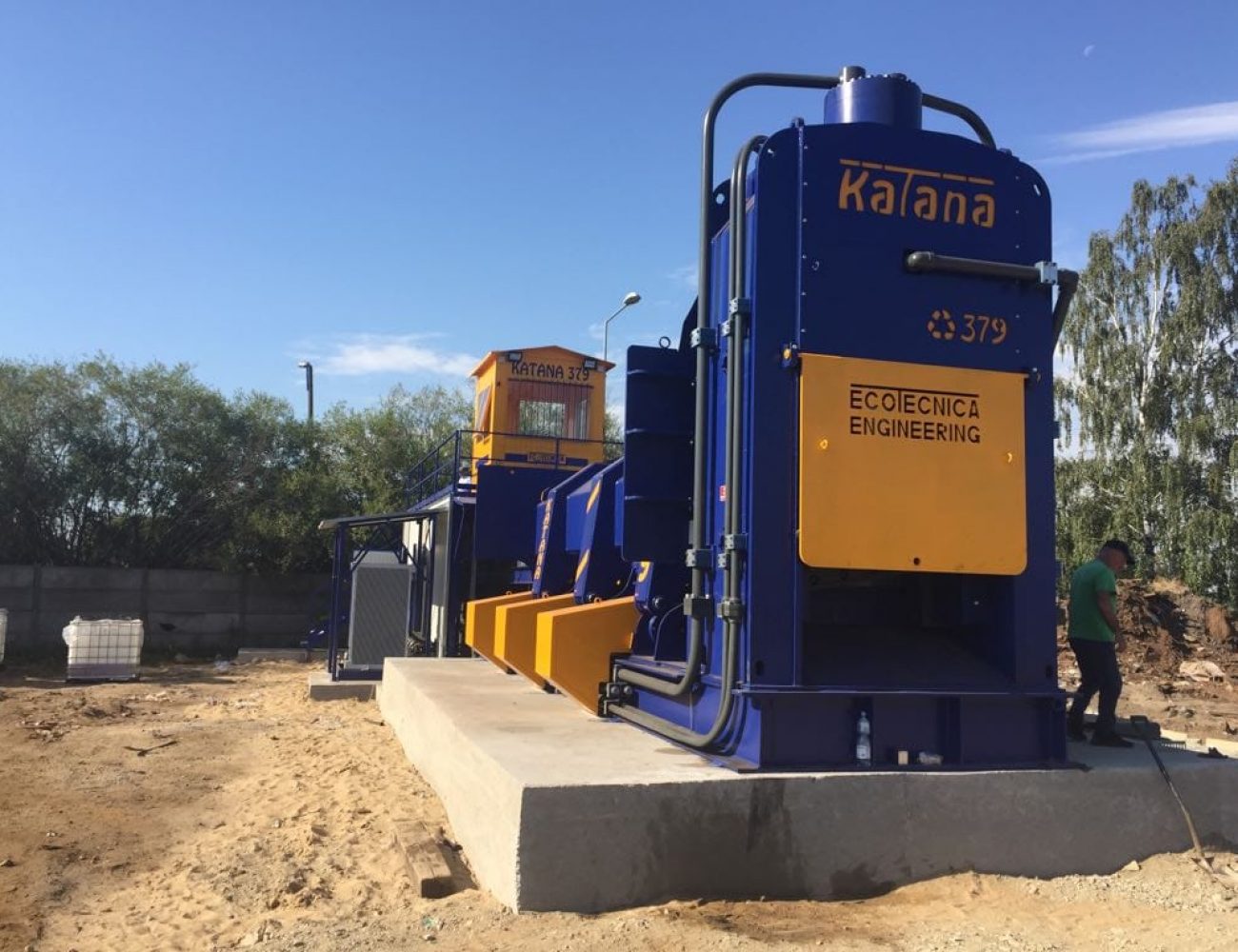

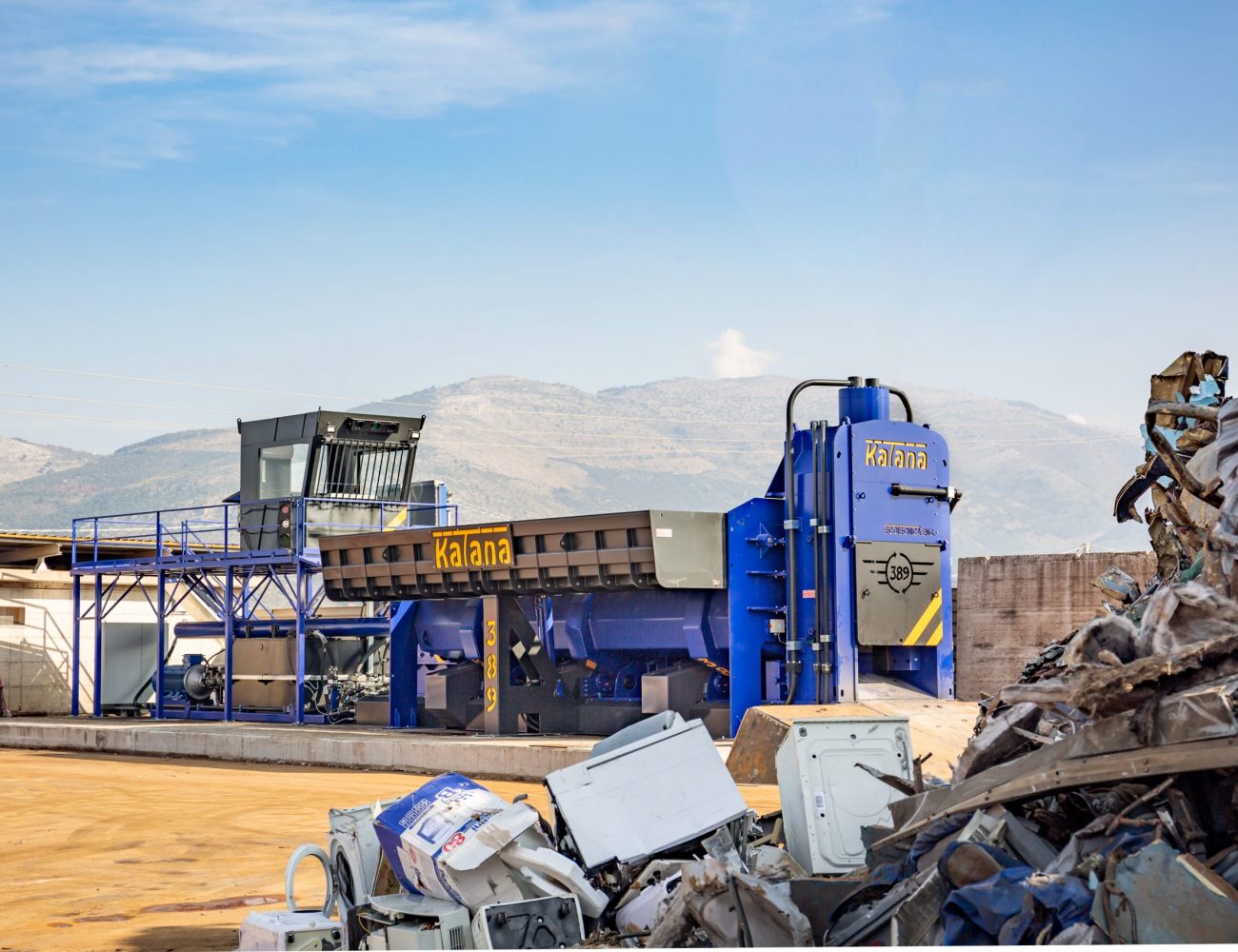

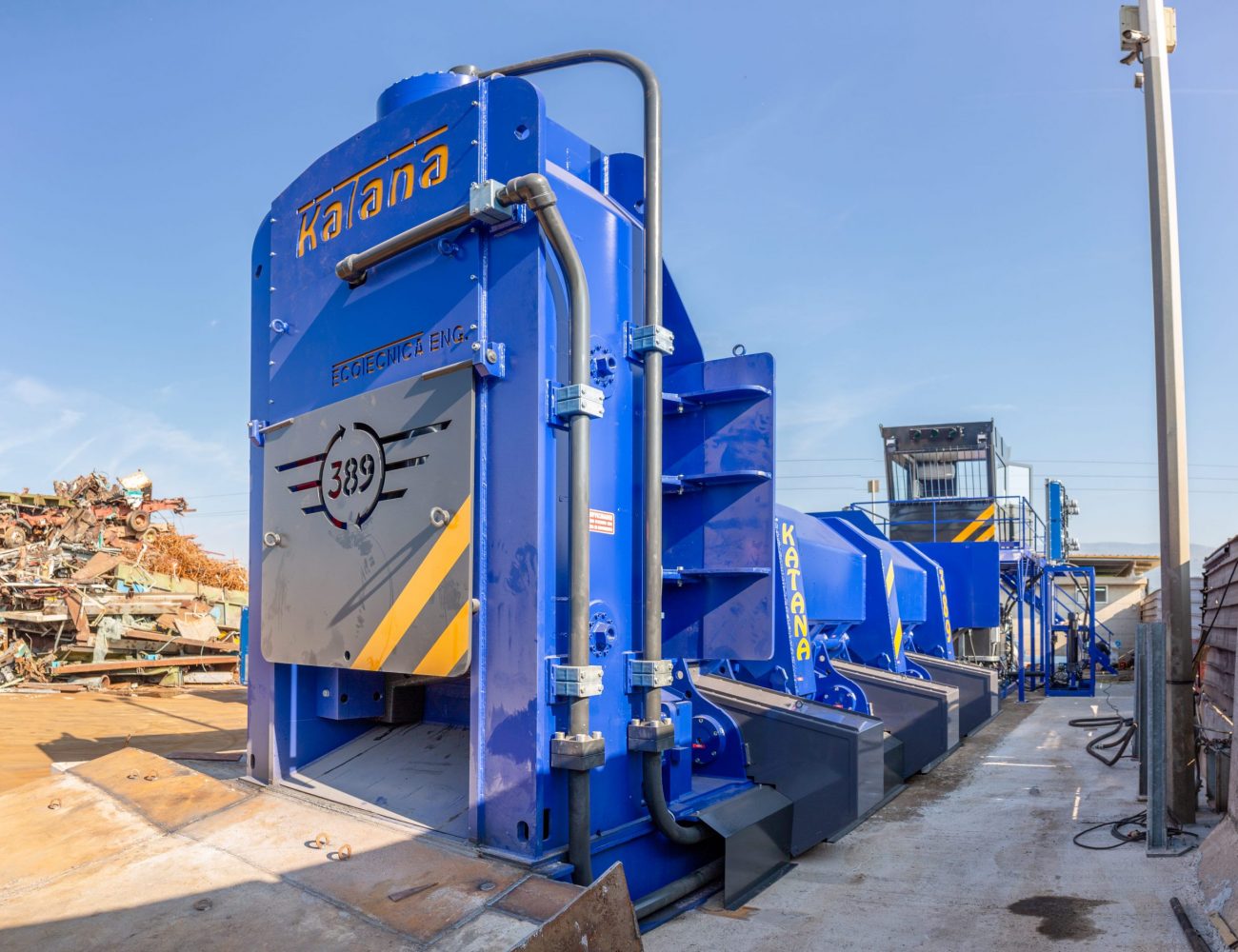

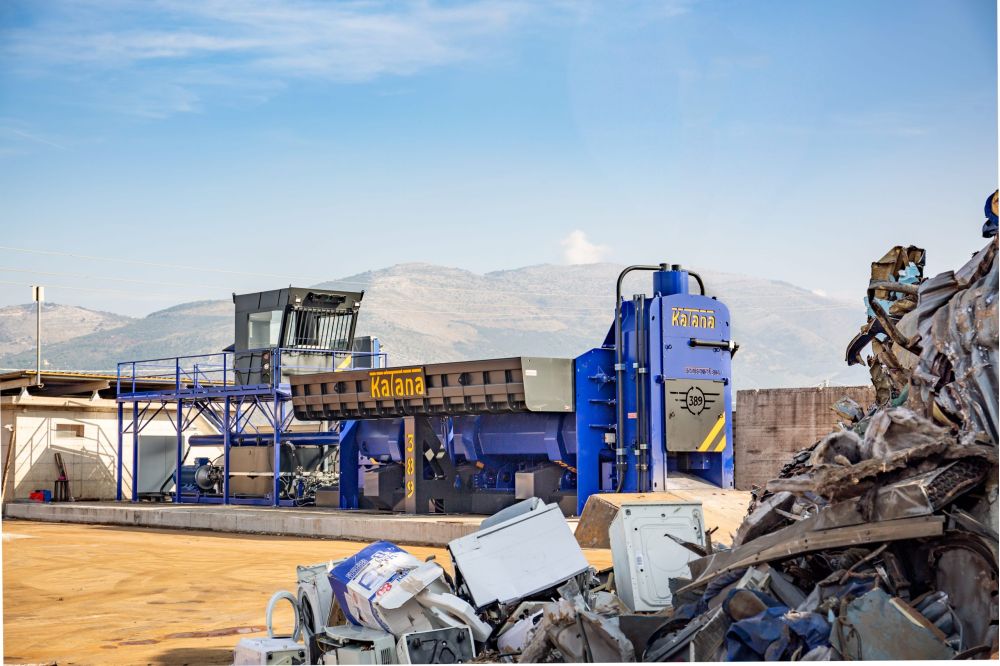

Series 900
| Shears | Katana 379 | Katana 389 | |
|---|---|---|---|
|
Shears:
Shearing force
|
Ton
|
Katana 379:
900
|
Katana 389:
900
|
|
Shears:
Vertical hold clamp force
|
Ton
|
Katana 379:
120
|
Katana 389:
120
|
| Compression box | Katana 379 | Katana 389 | |
|---|---|---|---|
|
Compression box:
Compression box length
|
mm
|
Katana 379:
7.000
|
Katana 389:
8.000
|
|
Compression box:
Compression box width (with wings open)
|
mm
|
Katana 379:
~ 2.550
|
Katana 389:
~ 2.550
|
|
Compression box:
Bale’s dimensions
|
mm
|
Katana 379:
900x700xV
|
Katana 389:
900x700xV
|
|
Compression box:
Oscillating wings with internal crossing cylinders
|
N°
|
Katana 379:
2
|
Katana 389:
2
|
|
Compression box:
Cylinders on each wing
|
N°
|
Katana 379:
3
|
Katana 389:
3
|
|
Compression box:
Compression force of the wings (force transmitted to the material)
|
Ton
|
Katana 379:
380
|
Katana 389:
380
|
|
Compression box:
Longitudinal compression force
|
Ton
|
Katana 379:
180
|
Katana 389:
180
|
|
Compression box:
Baler total weight
(Standard Configuration) |
kg
|
Katana 379:
109.000
|
Katana 389:
120.000
|

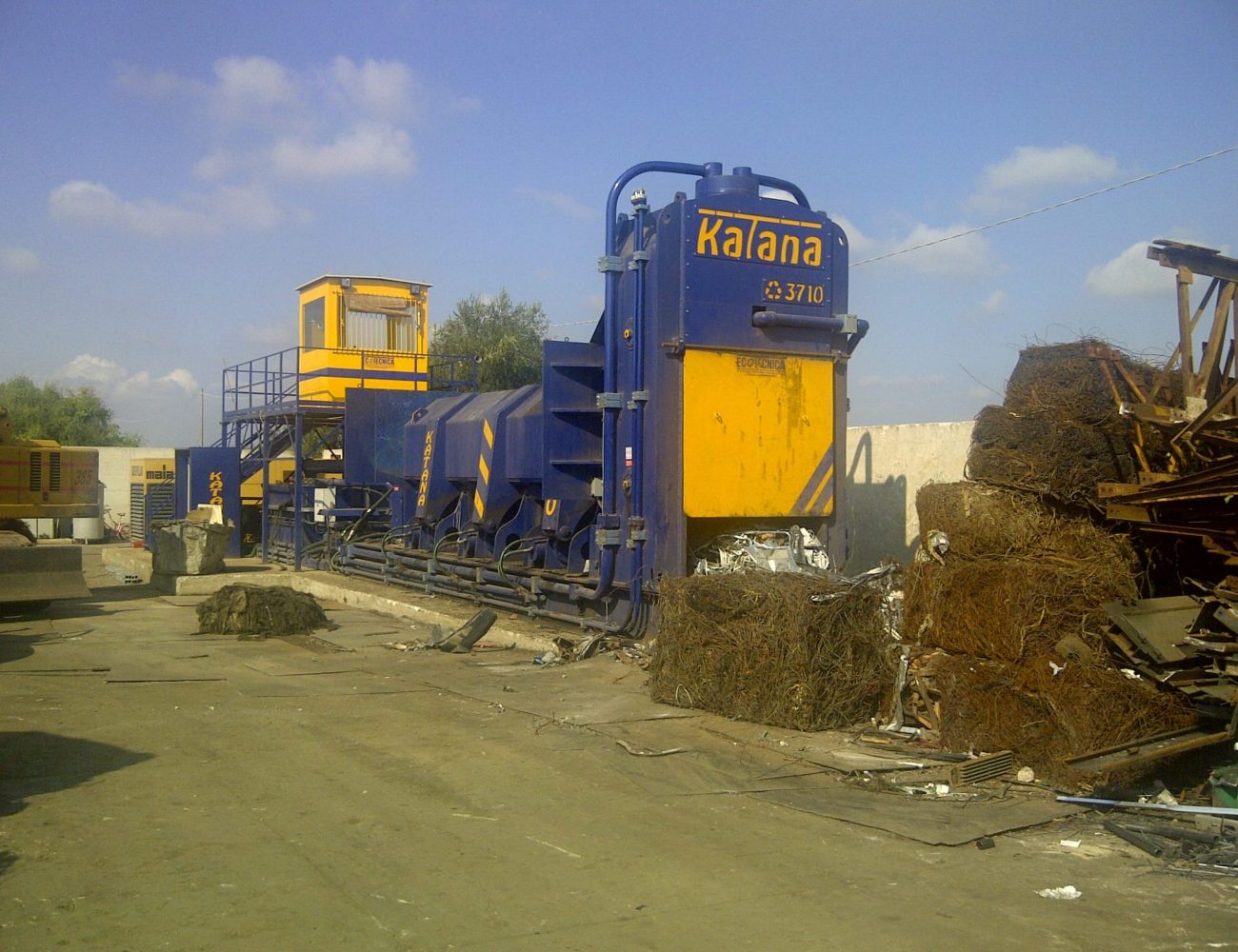

Series 1000
| Shears | Katana 3710 | |
|---|---|---|
|
Shears:
Shearing force
|
Ton
|
Katana 3710:
1.000
|
|
Shears:
Vertical hold clamp force
|
Ton
|
Katana 3710:
160
|
| Compression box | Katana 3710 | |
|---|---|---|
|
Compression box:
Compression box length
|
mm
|
Katana 3710:
7.200
|
|
Compression box:
Compression box width (with wings open)
|
mm
|
Katana 3710:
~ 2.850
|
|
Compression box:
Bale’s dimensions
|
mm
|
Katana 3710:
1.000x800xV
|
|
Compression box:
Oscillating wings with internal crossing cylinders
|
N°
|
Katana 3710:
2
|
|
Compression box:
Cylinders on each wing
|
N°
|
Katana 3710:
3
|
|
Compression box:
Compression force of the wings (force transmitted to the material)
|
Ton
|
Katana 3710:
480
|
|
Compression box:
Longitudinal compression force
|
Ton
|
Katana 3710:
180
|
|
Compression box:
Baler total weight
(Standard Configuration) |
kg
|
Katana 3710:
185.000
|

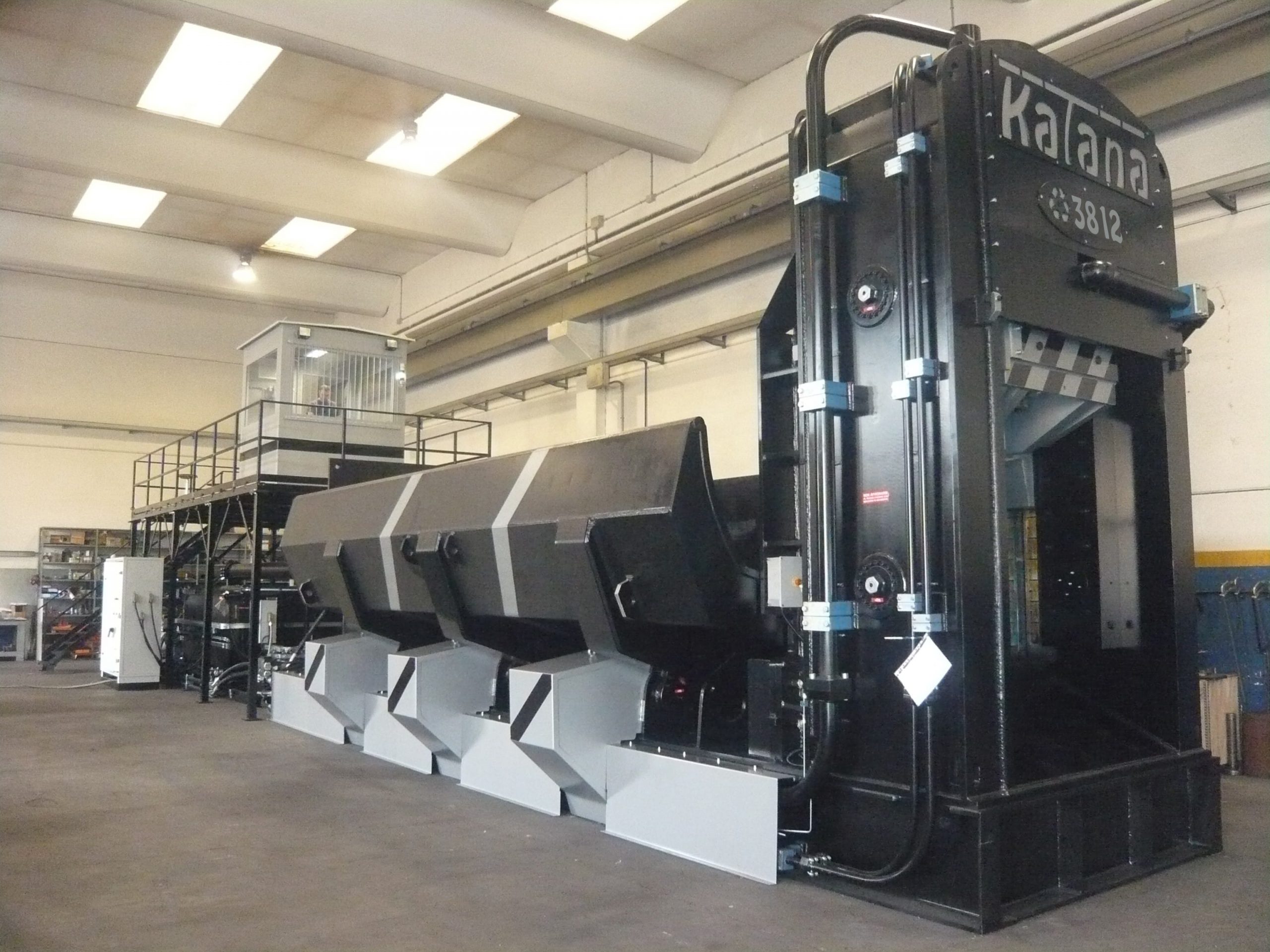

Series 1200
| Shears | Katana 3812 | |
|---|---|---|
|
Shears:
Shearing force
|
Ton
|
Katana 3812:
1.200
|
|
Shears:
Vertical hold clamp force
|
Ton
|
Katana 3812:
120
|
| Compression box | Katana 3812 | |
|---|---|---|
|
Compression box:
Compression box length
|
mm
|
Katana 3812:
8.000
|
|
Compression box:
Compression box width (with wings open)
|
mm
|
Katana 3812:
~ 2.850
|
|
Compression box:
Bale’s dimensions
|
mm
|
Katana 3812:
1.000x800xV
|
|
Compression box:
Oscillating wings with internal crossing cylinders
|
N°
|
Katana 3812:
2
|
|
Compression box:
Cylinders on each wing
|
N°
|
Katana 3812:
3
|
|
Compression box:
Compression force of the wings (force transmitted to the material)
|
Ton
|
Katana 3812:
480
|
|
Compression box:
Longitudinal compression force
|
Ton
|
Katana 3812:
180
|
|
Compression box:
Baler total weight
(Standard Configuration) |
kg
|
Katana 3812:
220.000
|
